Strip Feeder Tray Strip Feeder Tray
Strip feeder tray base plate for max.11 x 8mm tape strips. ESD safe. Fits all machines. Enables the use of small quantities of components on a Pick&Place machine. Same size as JEDEC tray holds strips of 300mm. Add supports (ref. A05000002): available in 8, 13 and 19mm. Strip feeder tray base plate for max.11 x 8mm tape strips. ESD safe. Fits all...
-
Support for thick strips Support for thick strips
Support for strip feeder tray (ref: A05000001). We propose different sizes: from 8mm to 19mm. Strip feeder tray fits all machines.It enables the use of small quantities of components on a Pick&Place machine.Same size as JEDEC Tray holds strips of 300mm (exact same size as a Jedec specified tray). Support for strip feeder tray (ref: A05000001). We propose different sizes:...
-

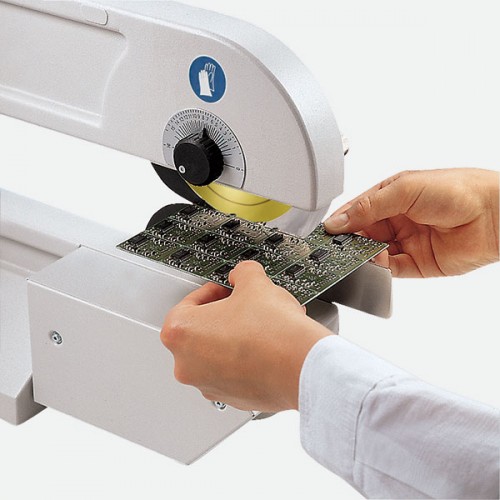

Depanelizer MAESTRO 2 Depanelizer MAESTRO 2
Manual card separator. Model for small series. The printed circuits are pushed into the circular cutter and separated. Manual card separator. Model for small series. The printed circuits are...
-
Depaneling machine MAESTRO 2M motor Depaneling machine MAESTRO 2M motor
MAESTRO 2M separates without constraint of larger series, particularly suitable for cards with high density of components or fine banks. The lower blade is motorized. The PCB is introduced, grasped by the circular blade then transported and separated. 3 speeds are adjustable MAESTRO 2M separates without constraint of larger series, particularly...
-
Upper blade for MAESTRO 2/2M Upper blade for MAESTRO 2/2M
Upper blade for MAESTRO 2/2M Diameter 125 mm Upper blade for MAESTRO 2/2M Diameter 125 mm
-

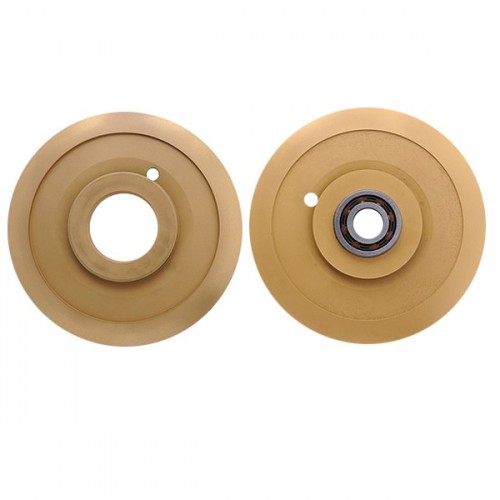

Lower blade for MAESTRO 2/2M Lower blade for MAESTRO 2/2M
Lower blade for MAESTRO 2/2M Diameter 125 mm Lower blade for MAESTRO 2/2M Diameter 125 mm
-

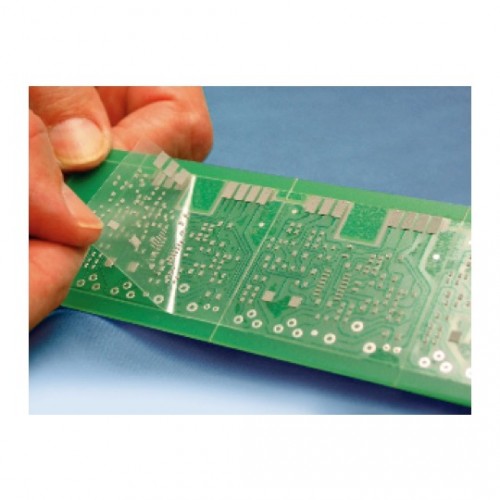

SMD Solder Paste Trial Print Foil SMD Solder Paste Trial Print Foil
A4 sheet (can be cut to the desired size) for testing on the screen printing machine when setting up the assembly of a new printed circuit board. The side of the sheet to be applied to the card is adhesive. Provides a clear view of the solder paste on the transparent sheet. Avoids cleaning the card and leaving no residue. A4 sheet (can be cut to the desired size) for testing on the screen printing...
-

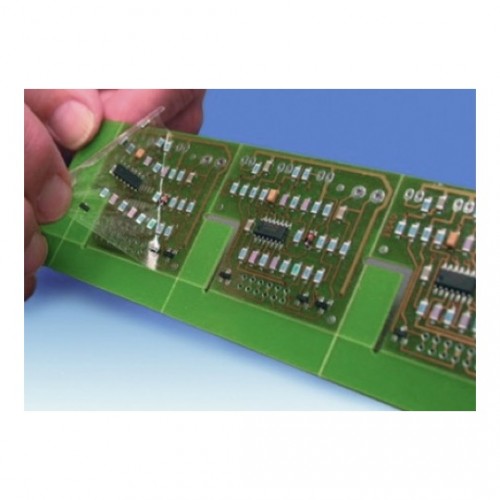

SMD Trial Placement Foil SMD Trial Placement Foil
A4 sheet (can be cut to size) to test the pick-and-place when setting up the machine for a new PCB. The sheet is double-sided adhesive. After removing the film without leaving any residue, the components and the PCB can be reused. Allows an optical inspection and, if necessary, correction of the pick-and-place machine. A4 sheet (can be cut to size) to test the pick-and-place when setting up the...
-
PCB Tray Large PCB Tray Large
Type L board for printed circuits Large format: dimensions 355x270x130mm Black color Type L board for printed circuits Large format: dimensions 355x270x130mm...
-

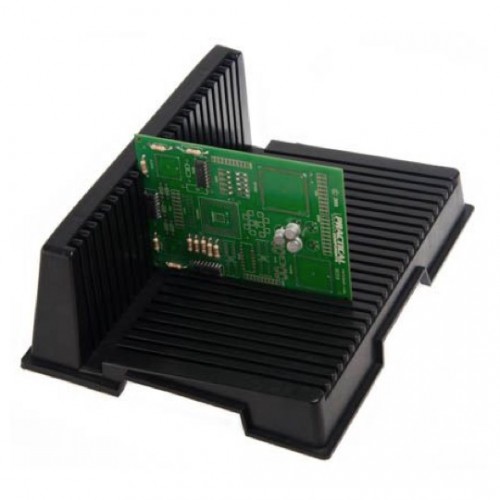

PCB Tray Small PCB Tray Small
Type L board for printed circuits Small format: dimensions 256x205x95mm Black color Type L board for printed circuits Small format: dimensions 256x205x95mm Black...
-
PCB Tray Flat Large PCB Tray Flat Large
Tray flat large for printed circuits Flat shape with handles Large format: dimensions 484x175x50mm Black color Tray flat large for printed circuits Flat shape with handles Large format:...
-

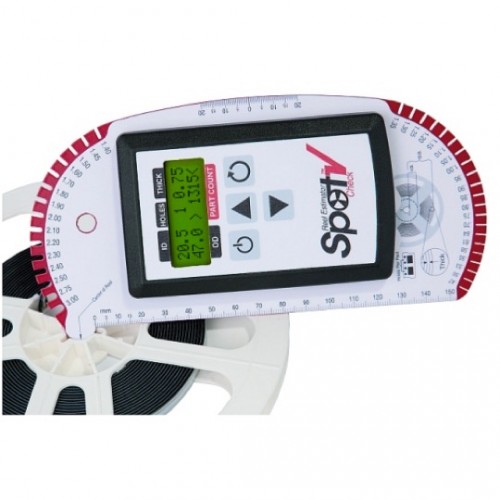

Component Estimator Component Estimator
Estimate to calculate components remained on a SMT reel. Suitable for all thickness and sizes. For SMT reels of 18 as well as 33 cm. Can be used even if reels are on the machine. Accuracy within 5% Much faster and cheaper than other counters. Estimate to calculate components remained on a SMT reel. Suitable for all...
