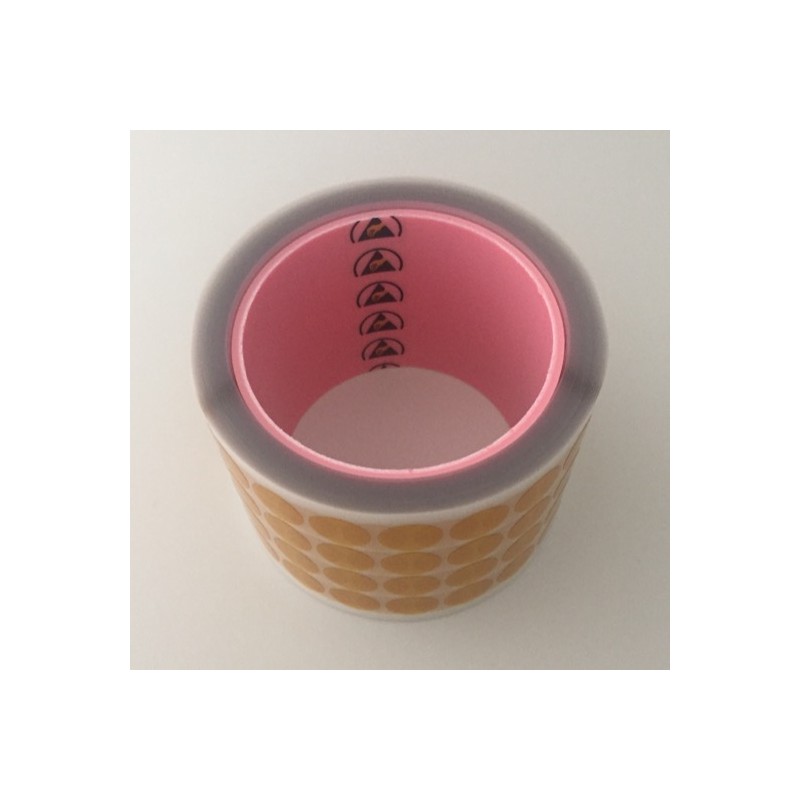

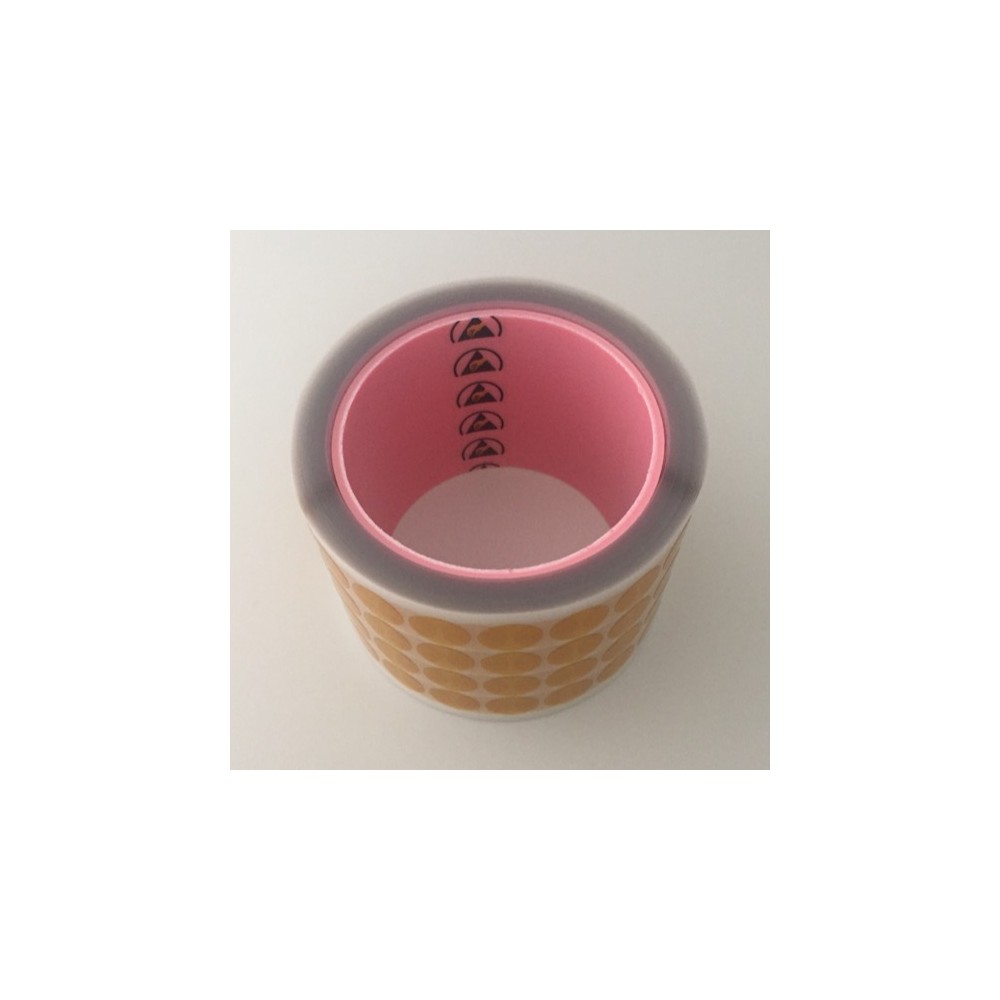

Dots Kapton low ESD

Temperature: 280°C max
Diameter from 03 to 10: 10,000 dots per roll
Diameter from 11 to 15: 5,000 dots per roll
Diameter from 16 to 22: 2,000 dots per roll (Other dimensions / formats available on request )
ESD: YES
Surface resistance: 106 -109Ohms
Color : amber

create quotation

About the work

Masking of the cards before wave soldering, maintenance of thermocouples during the production of thermal profiles, electrical insulation.

KD803 is a polyamide film, coated with a silicone adhesive with extremly low electrostatic discharge properties.
Dimensional stability at hight temperatures.
Resistant to chemicals.
Excellent resistance against heat, cold, solvent and stress.

Static charge: removal of the roller: <100 V du SUS <50 V
Dielectric strength: 4000 Volts

For more detailed product information, please contact us directly.
