About the work

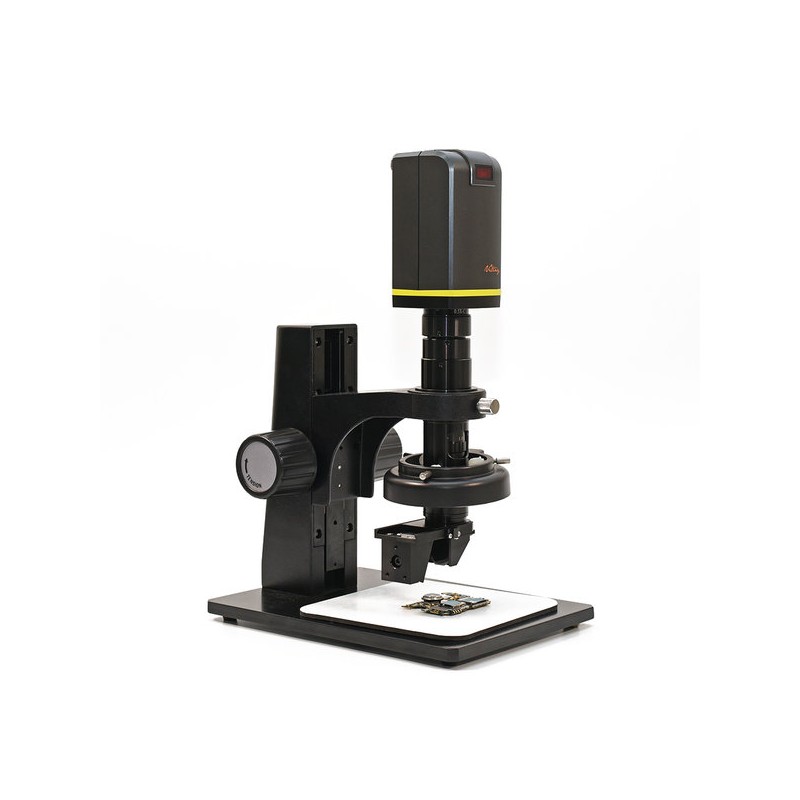

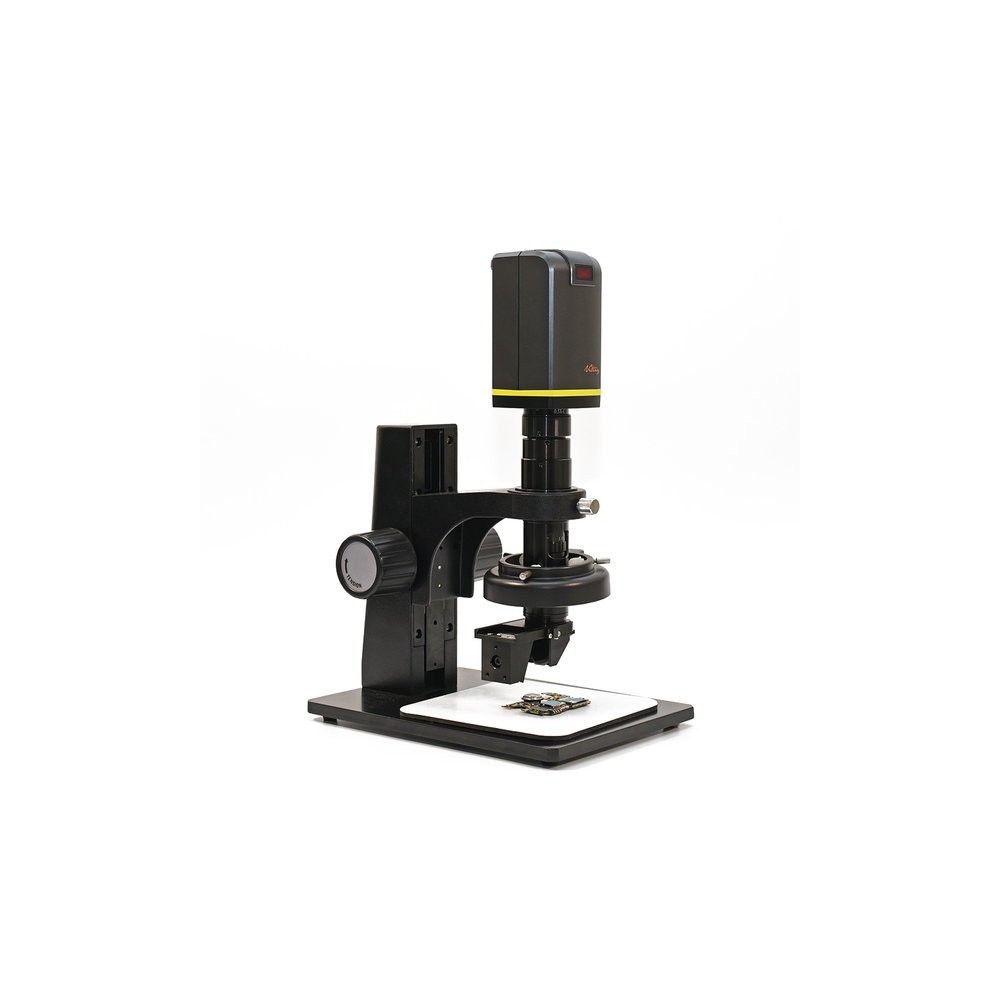

Autofocus continuous zoom digital microscope has special lens design.

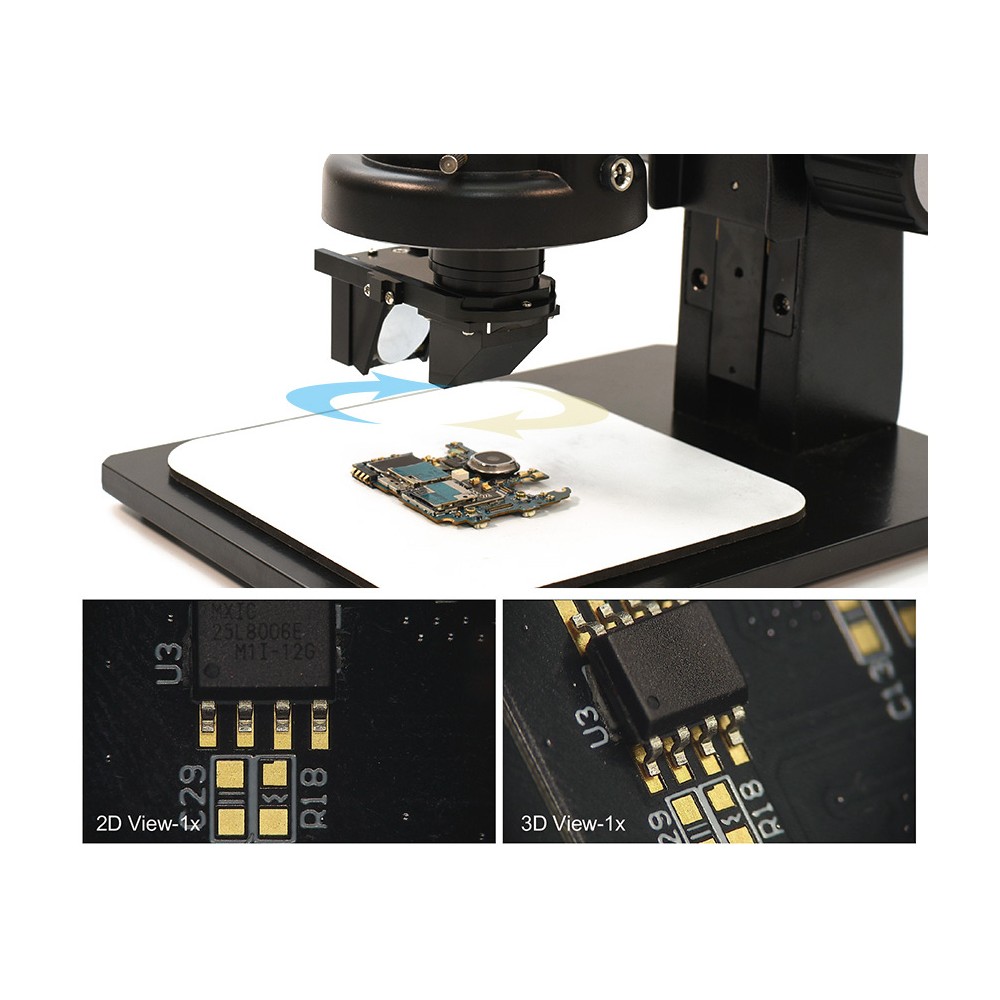

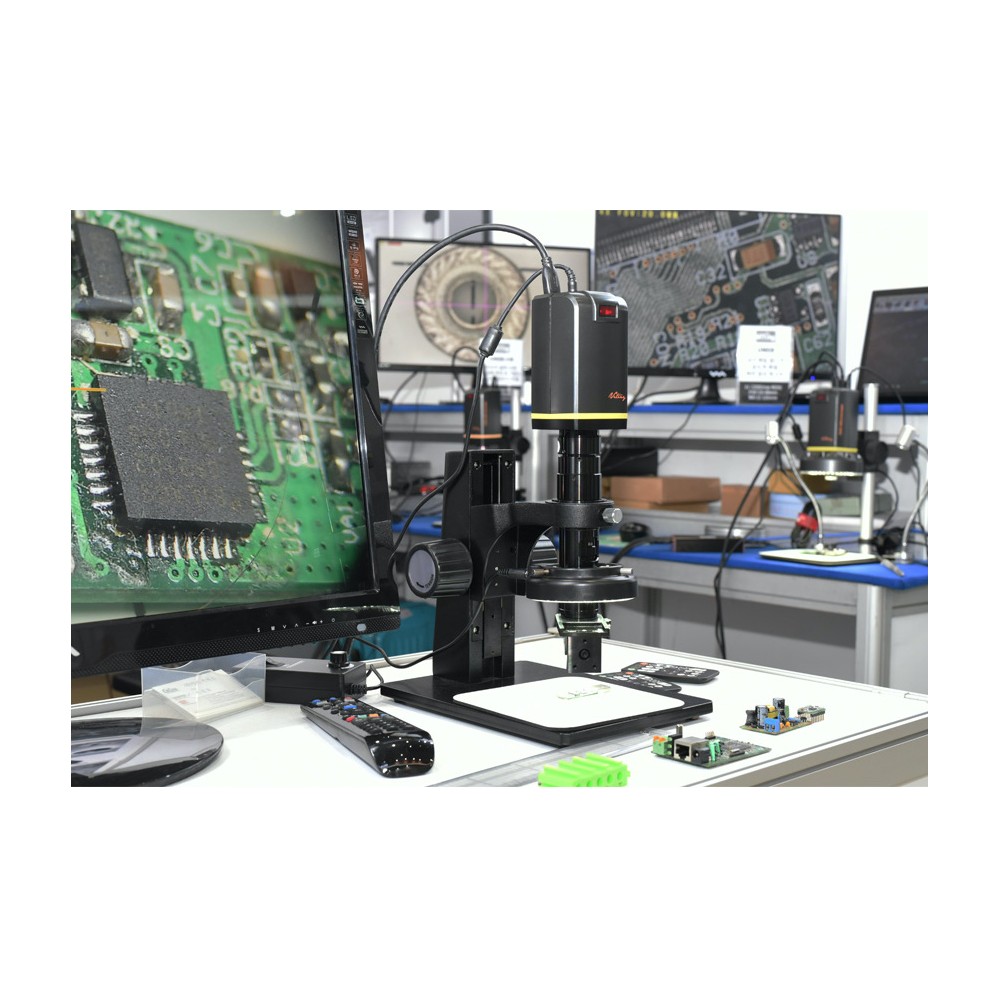

Such 2D/3D inspection system is very efficient and convenient for side soldering inspection and inside part quality examination. The 3D side viewing rotation device can be manually operated to control observation angle and points for easy inspection.
Specifications:

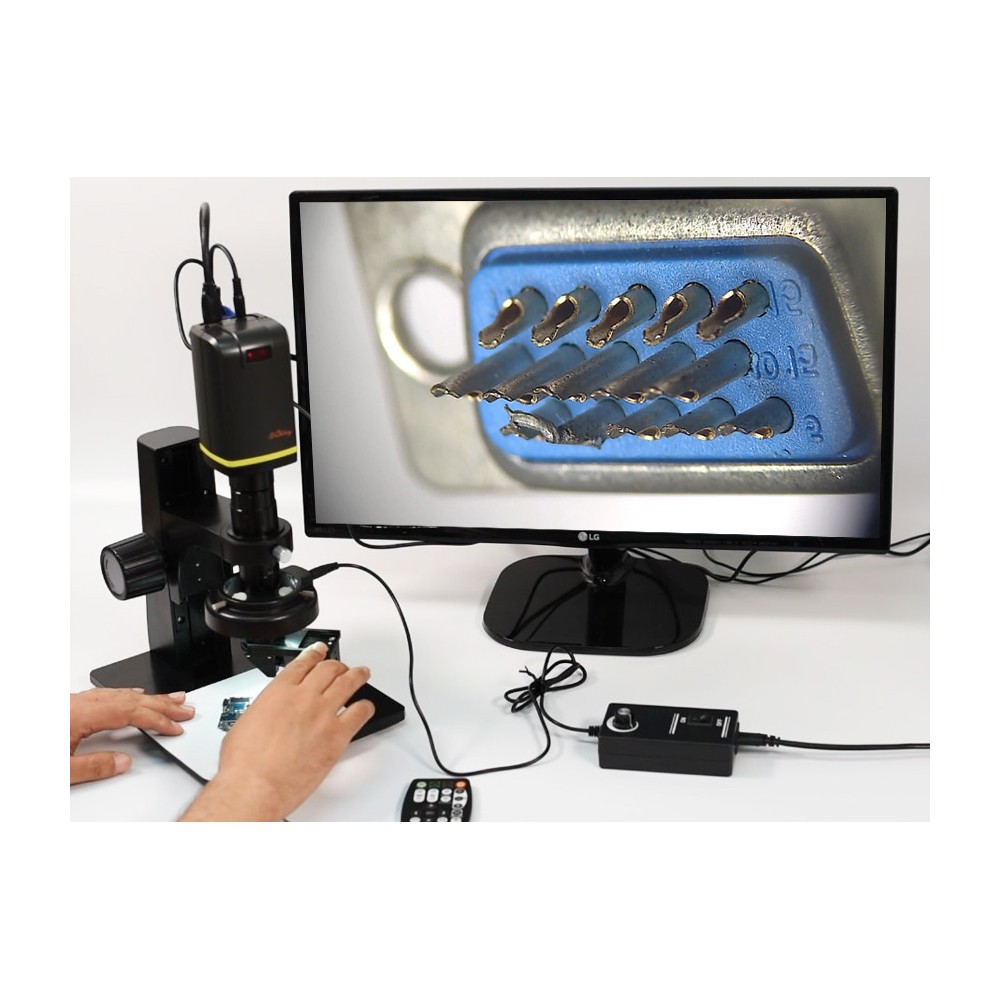

Magnification: 2x to 147x on 24" HDMI monitor
Working distance: 80cm for 2D and 30cm for 3D
Field of View: 23.7mm - 3.6mm
CMOS Sensor: 2MP resolution
Full HD 1080P output
Lens: C-Mount 2D/3D lens
LED light with adjustable brightness
Response speed: 60 frame per second

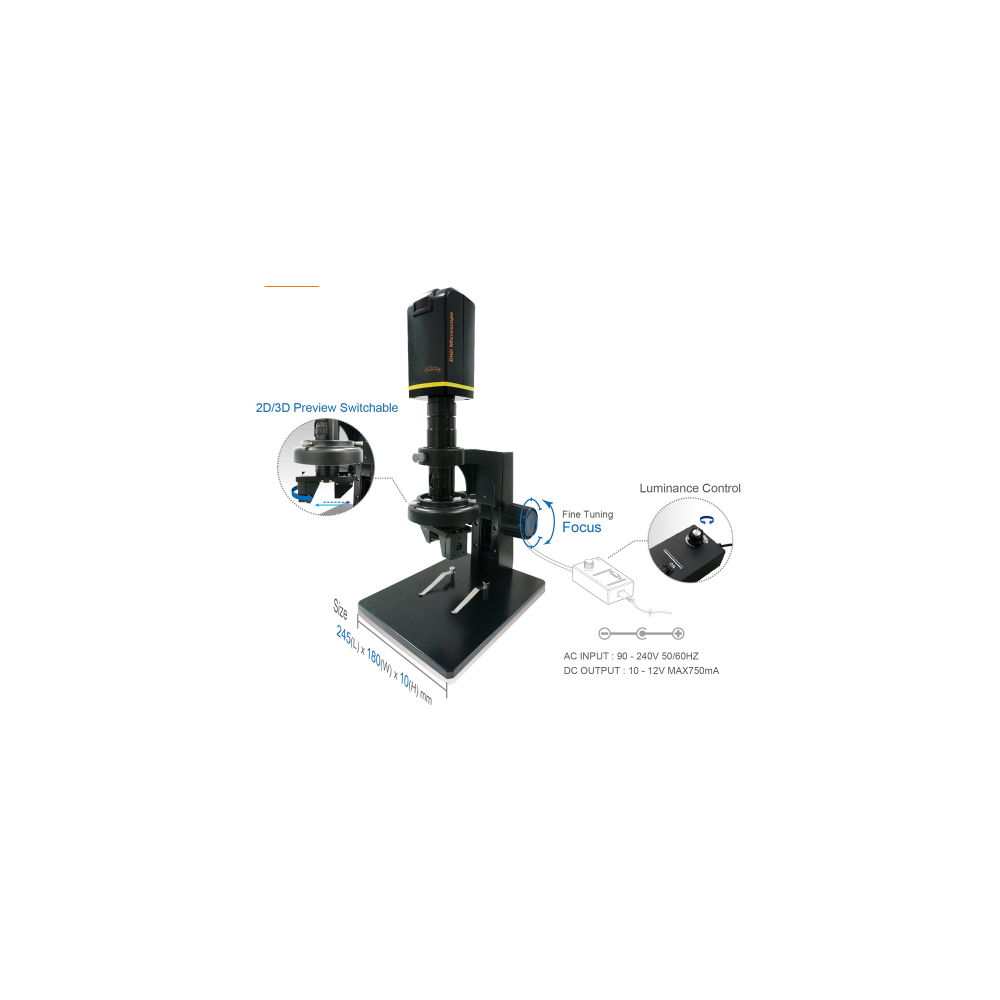

Power: DC 5V/2A input from 110 -240V AC source
Power adaptor cable length: 180cm
Dimension: 68(L) x 66(W) x 310(H)mm
For more detailed product information, please contact us directly.
