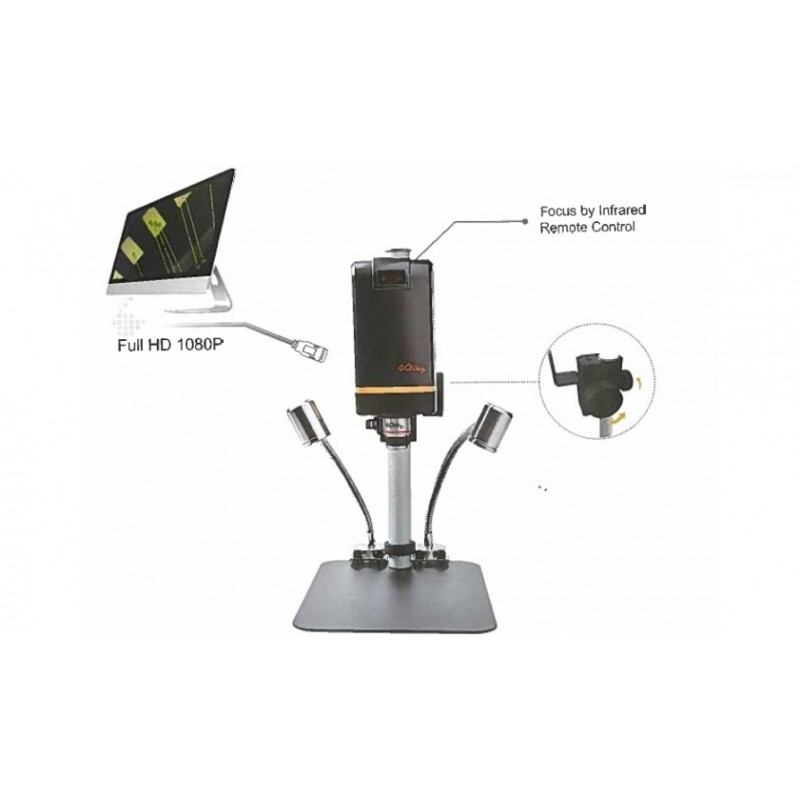

Digital Microscope

Reference: A02000028

This digital Microscope is suitable for fast inspection in the production line.

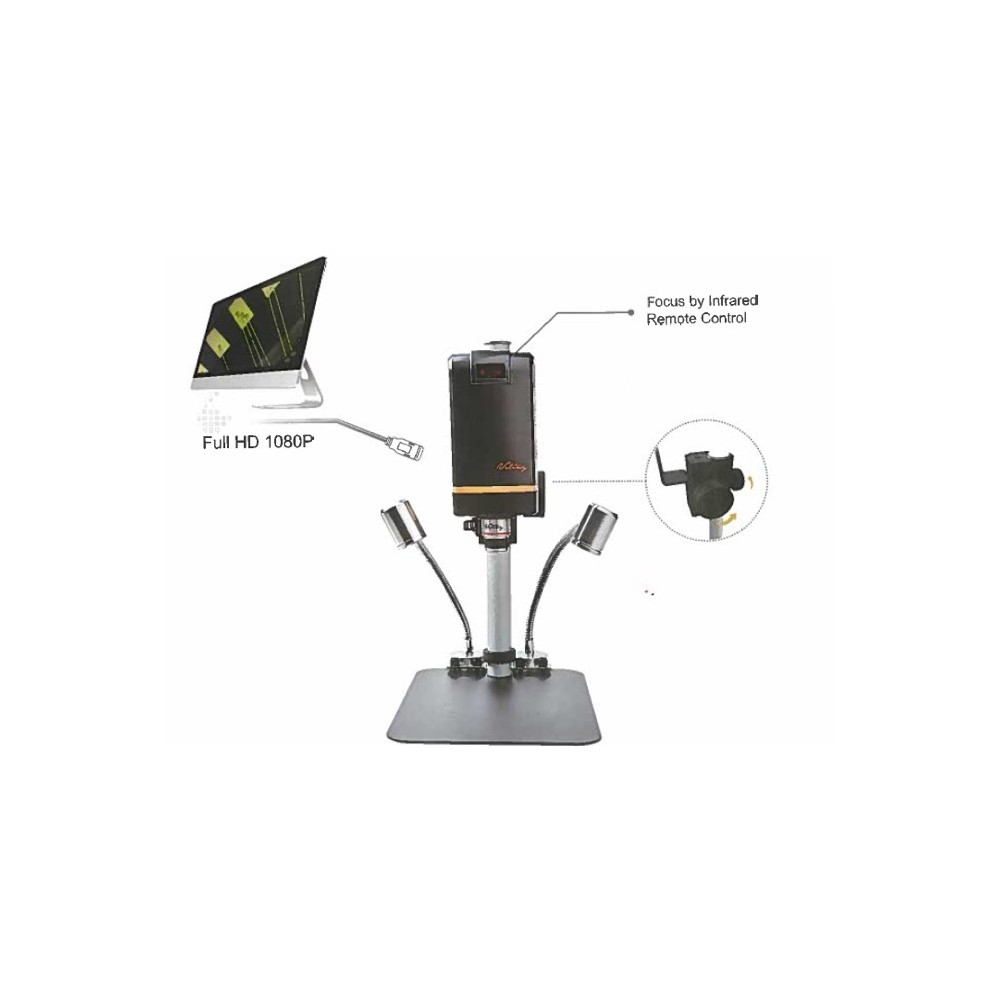

HDMI/USB Autofocus Digital Microscope can output to a Windows PC and TV monitor at same time.

Several options and optional accessories can be added to the product.

create quotation

General Features about the products:

- Magnification : 12x – 132x on 21.5” monitor per 4x Lens

- Working distance : 22.5mm – 226mm

- CMOS sensor : 2M pixels

- Dimension : 68 (L) x 66 (W) x 155 (H) mm

- IR remote control focus system for optional manual focus and auto-focus

- Full HD 1080P signal output & 60 frame rate per second

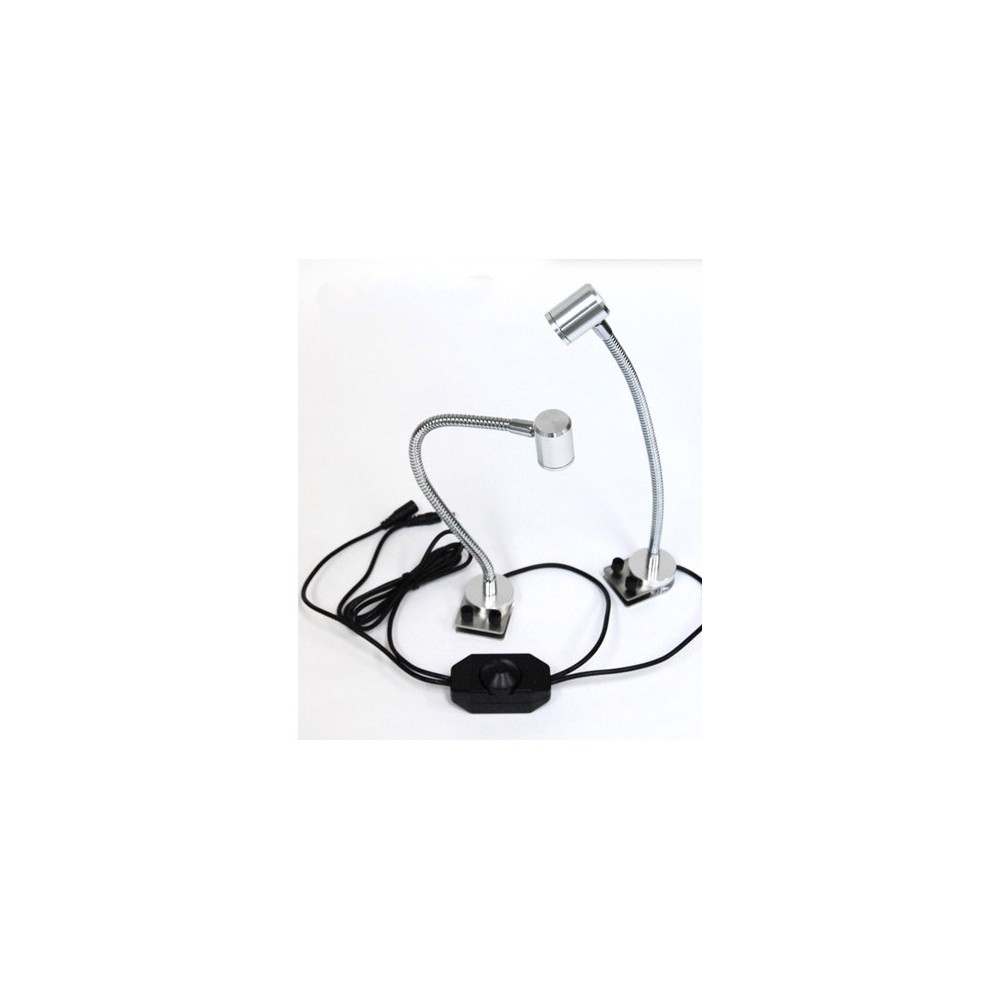

- Built-in external light socket

- Power supply : DC 5V/2A, cable length : 180 cm

Special Image Effect:

- Exposure : shutter, defog real-time image processing.

- Backlight : wide dynamic range.

- NR : noise reduction.

- Mirror : rotary image by left/right, up/down and 180° horizontal rotary.

- Neg.image : reverse image.

- Motion : detect moving object.

For more detailed product information, please contact us directly.
